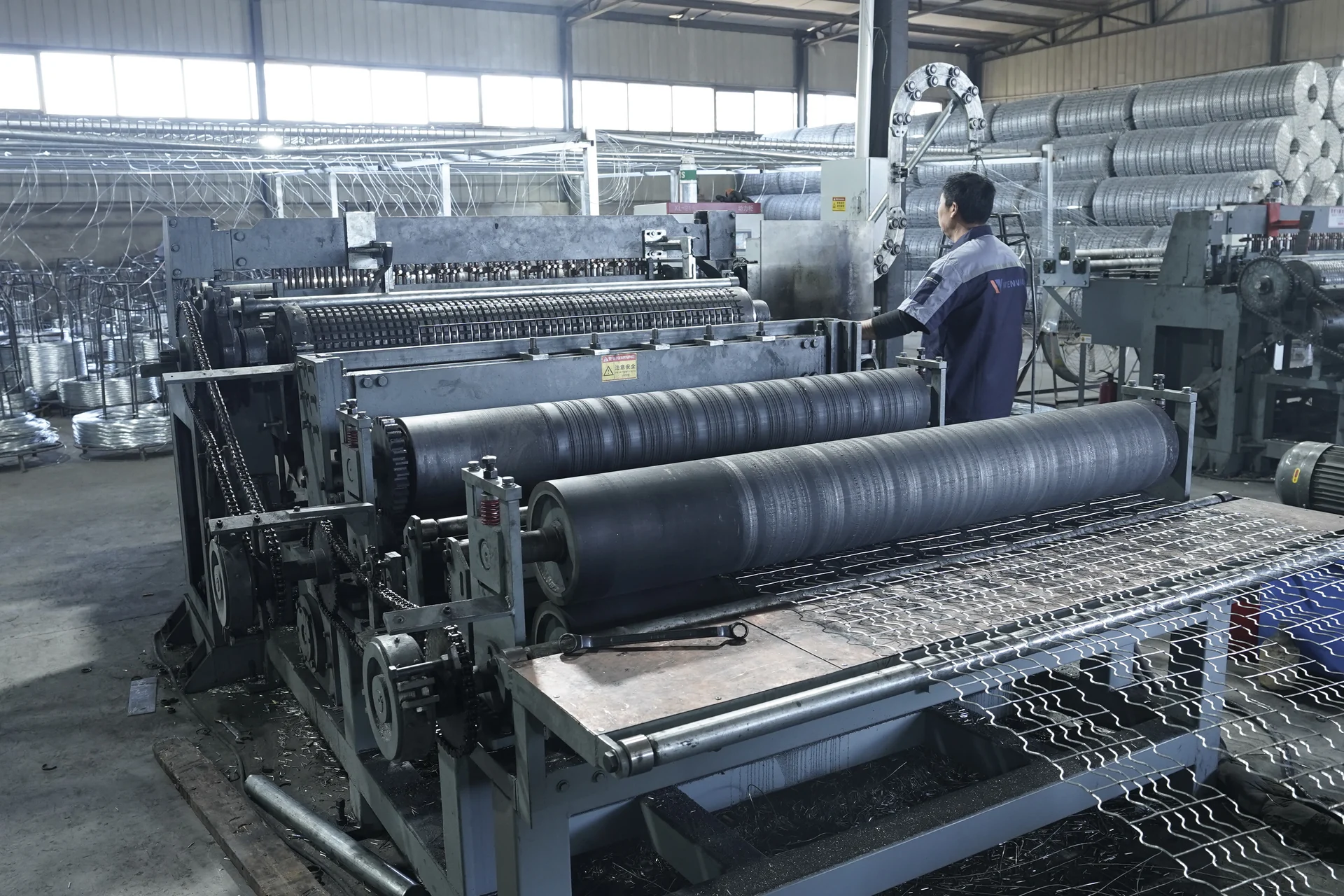

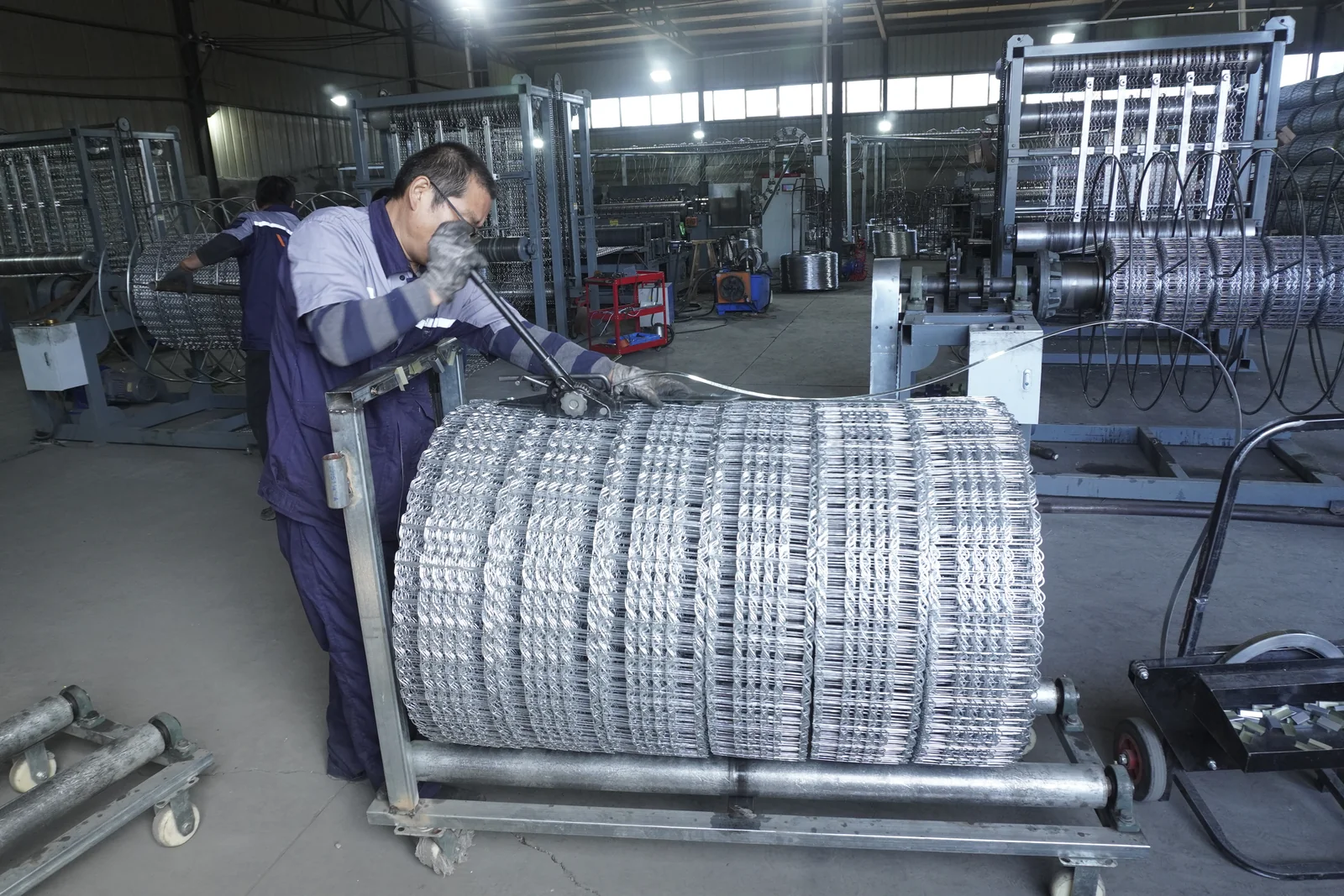

WENNIAN factory operator beside the mesh production line, with crimped wire mesh in the foreground

WENNIAN · PIPELINE REINFORCEMENT

Reinforcement mesh
for concrete
weight coating.

Galvanized low-carbon steel wire, crimped and welded for reinforcement within pipeline concrete weight coating.

Explore specifications Discuss your project
THE MATERIALGalvanized steel
THE STRUCTURECrimped & welded
THE APPLICATIONConcrete weight coating
DISCOVER THE MESH
ON THE FACTORY FLOOR

01 / THE PRODUCT

Crimped wire.
Welded reinforcement.

Pipeline reinforcement mesh combines crimped line wires with straight cross wires. The welded structure sits within the concrete weight coating, also known as CWC.

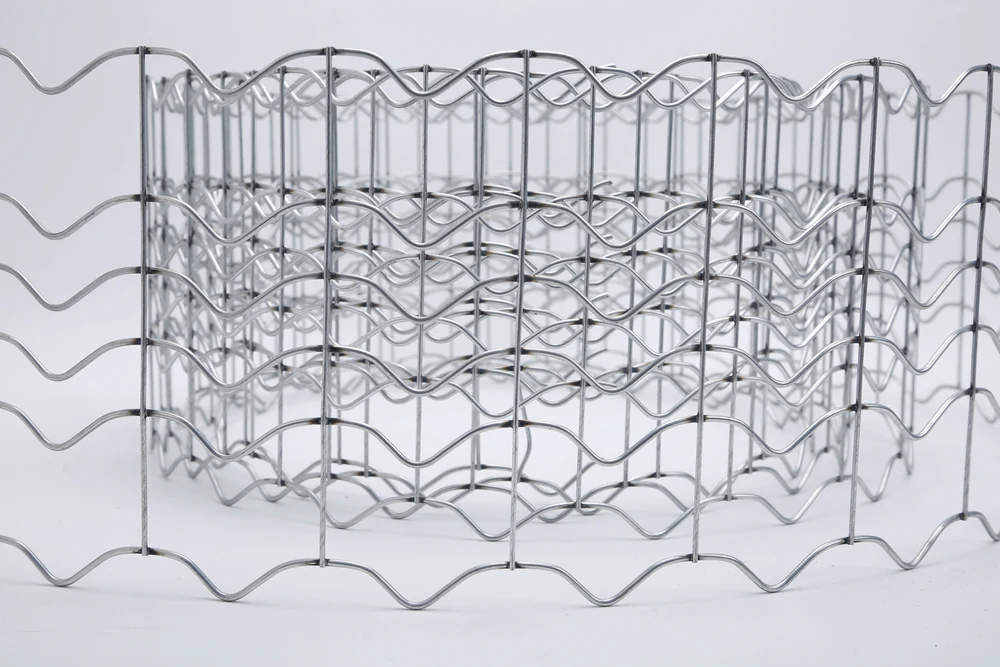

Curved sample of welded pipeline reinforcement mesh
PIPELINE REINFORCEMENT MESHENLARGE ↗
01

Crimped line wires

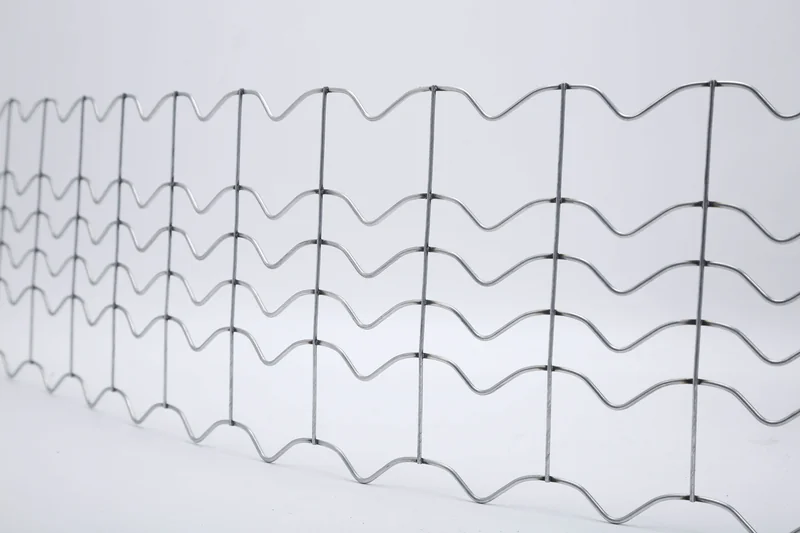

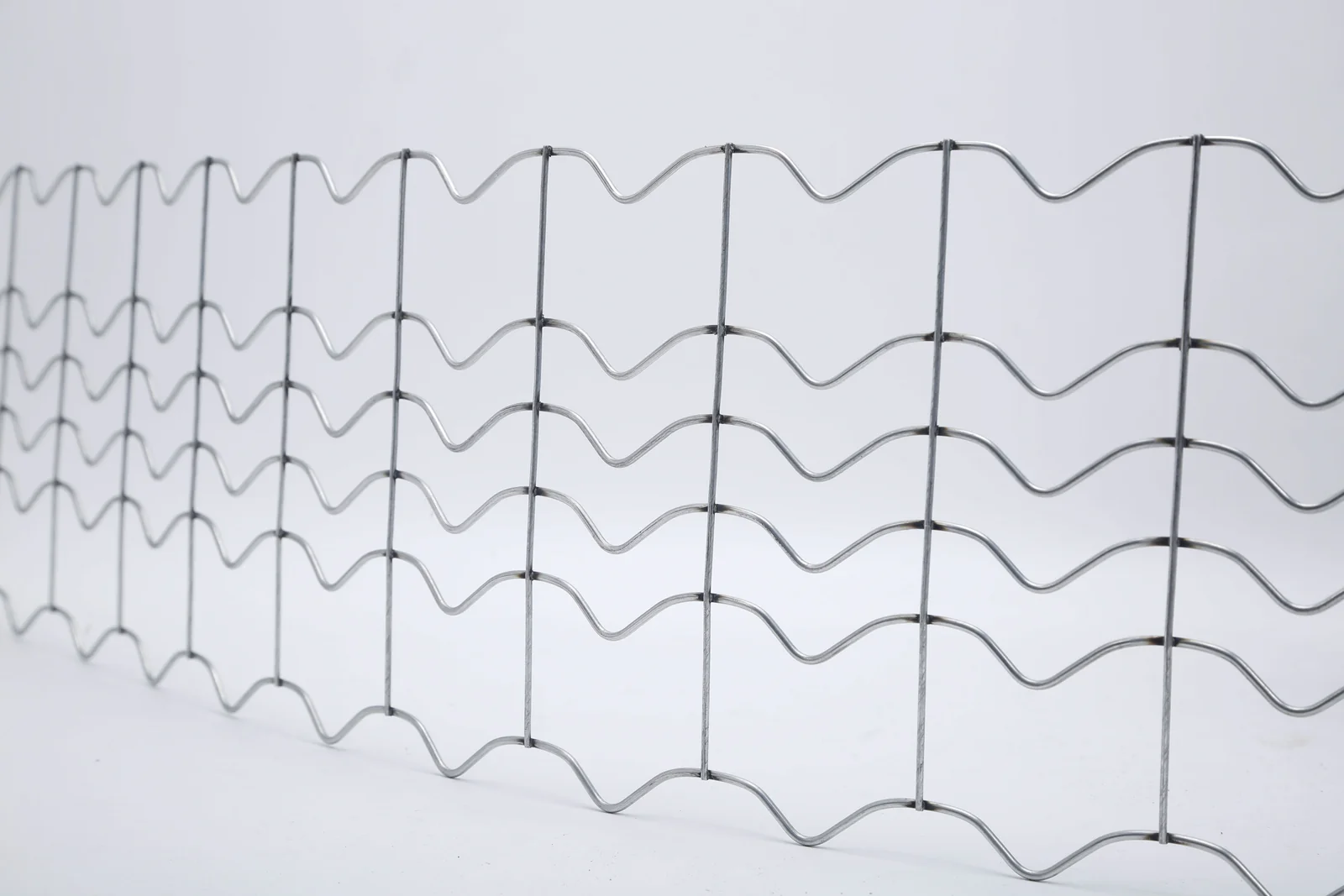

A repeating wave profile forms the longitudinal structure of the mesh.

02

Welded intersections

Straight cross wires are resistance welded to the line wires, holding the mesh geometry together.

03

Galvanized steel wire

Low-carbon steel wire with a galvanized finish. Specify the wire and coating requirements for your project.

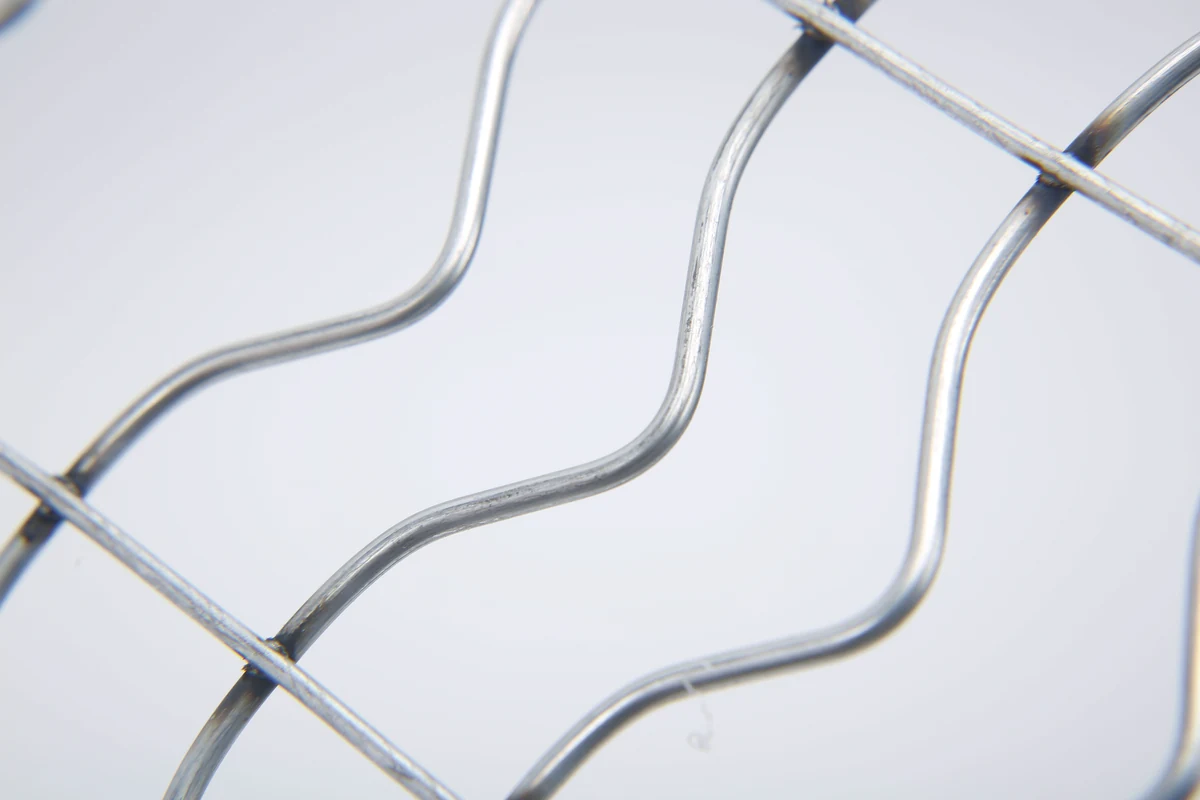

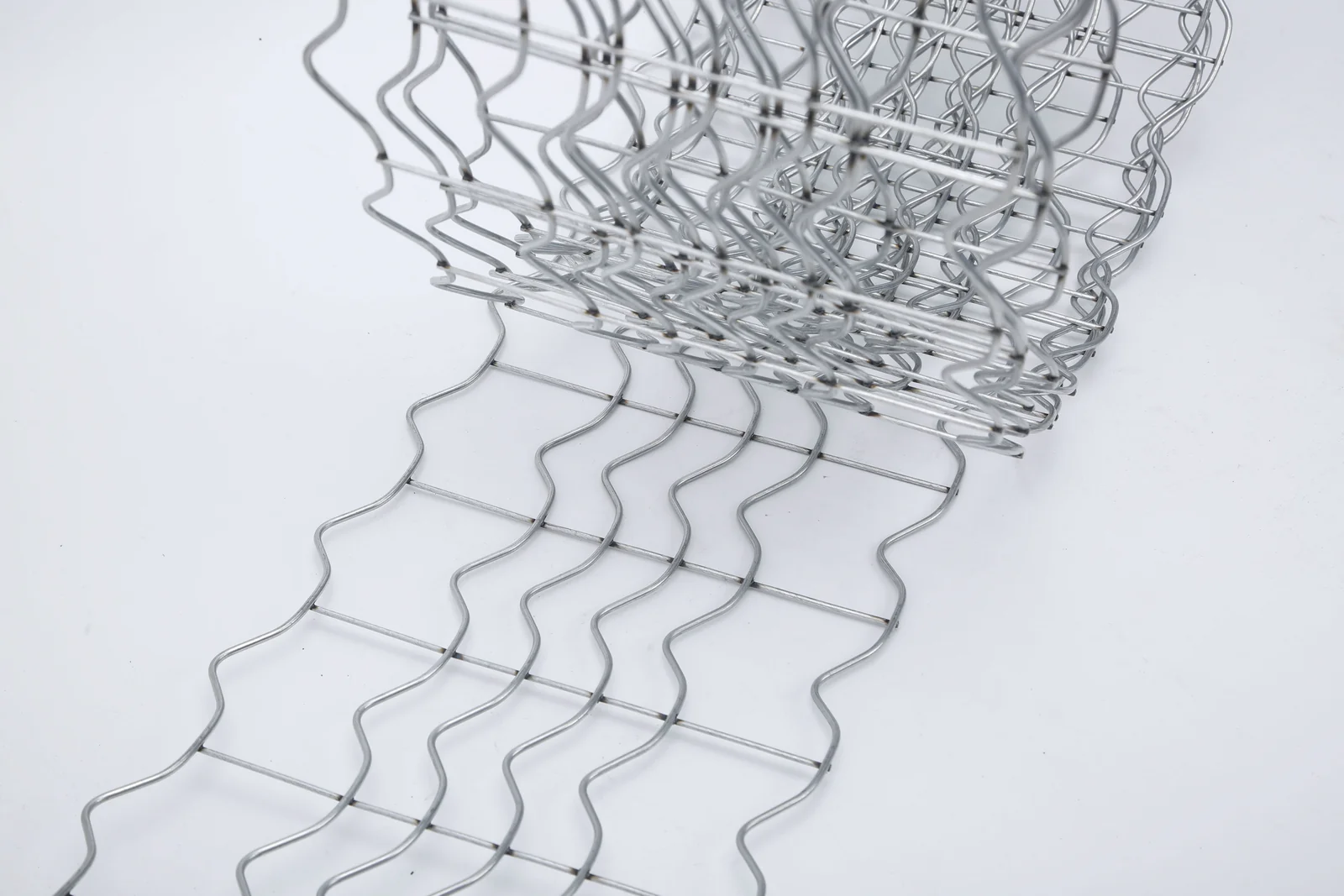

Close-up of the mesh profile and welded intersectionsLOOK CLOSERView the welded structure

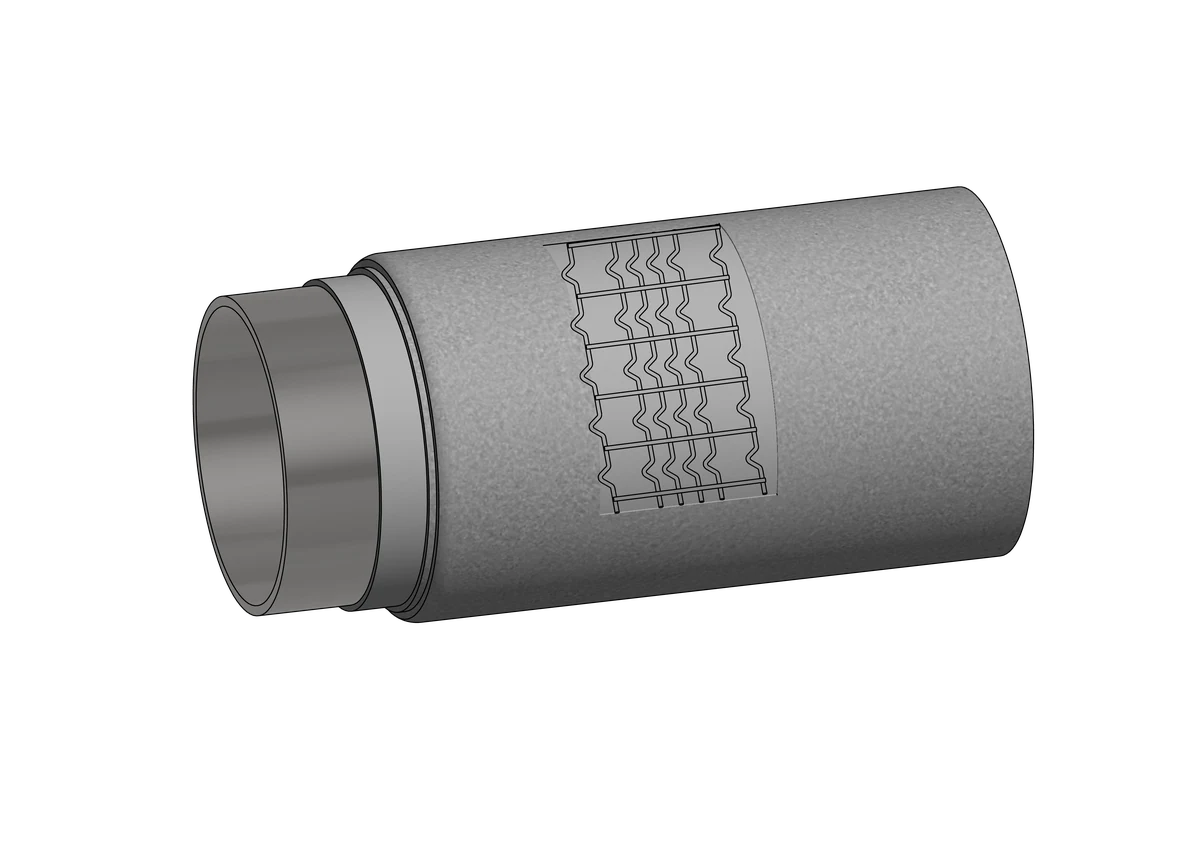

Illustrative pipe cutaway showing the steel pipe, protective coating, mesh reinforcement and concrete coatingLAYER ARRANGEMENT · ILLUSTRATIVE, NOT TO SCALE

THE COATING SYSTEM

Where the mesh
fits in.

The concrete provides weight. The mesh reinforces that concrete. The illustration shows where the mesh sits within the coating around the steel pipe.

  1. 01 Steel pipe
  2. 02 Protective coating
  3. 03 Reinforcement mesh
  4. 04 Concrete weight coating

02 / SPECIFICATIONS

Mesh dimensions.
Project requirements.

Compare the reference dimensions, material and roll formats. Share your drawing and required quantity to confirm the specification for your project.

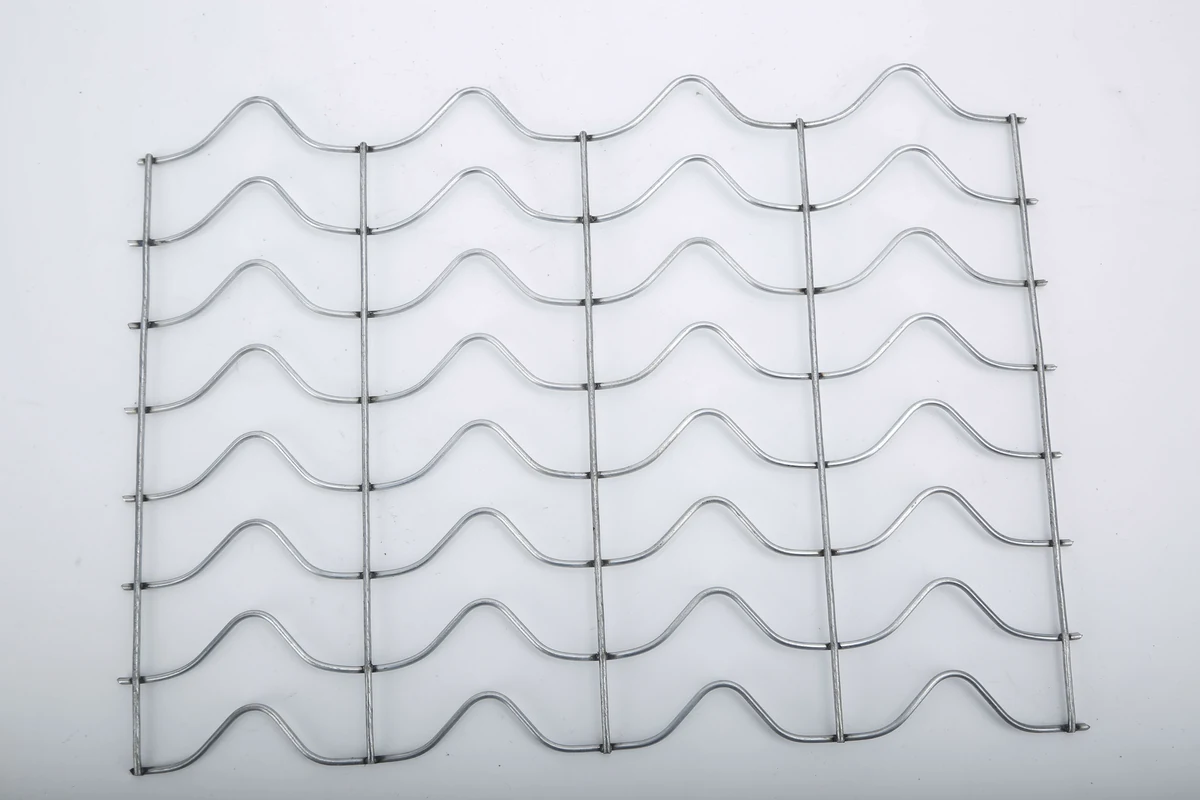

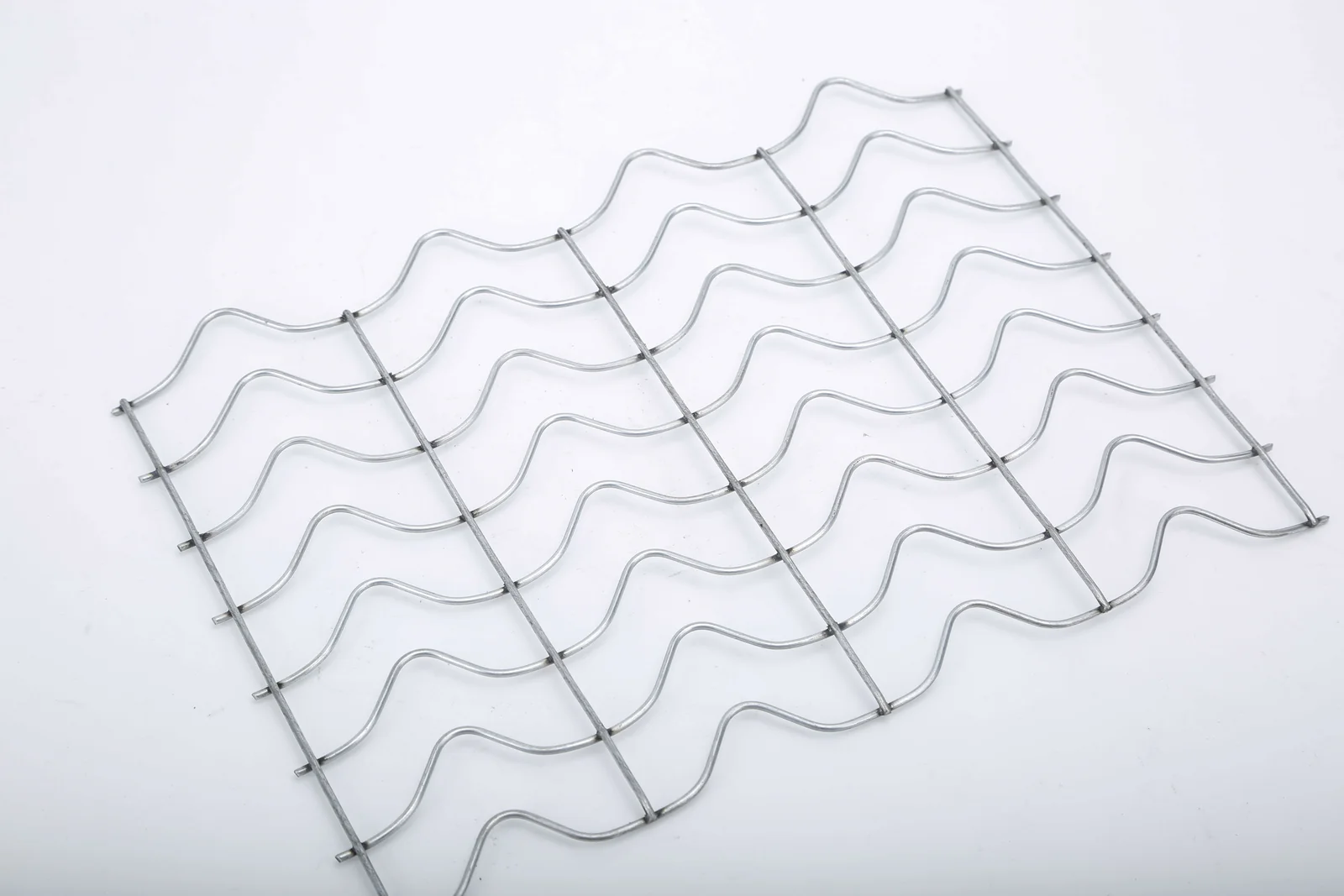

Flat mesh sample showing crimped line wires and straight cross wiresCRIMPED PROFILEExplore the construction ↗

REFERENCE CONFIGURATION

Wire diameter
2.0–3.0 mm
Nominal mesh width
190.5 mm
Mesh spacing
25.4 / 50.8 × 67 mm
Wire configurations
6-wire / 8-wire

Reference values are for initial selection. Final dimensions, tolerances and acceptance requirements are confirmed against the agreed project specification.

Confirm a specification
What does your project require?

03 / BEHIND THE MESH

From wire forming
to finished rolls.

Rizhao Wennian Trading Co., Ltd supplies galvanized welded wire mesh for concrete reinforcement.

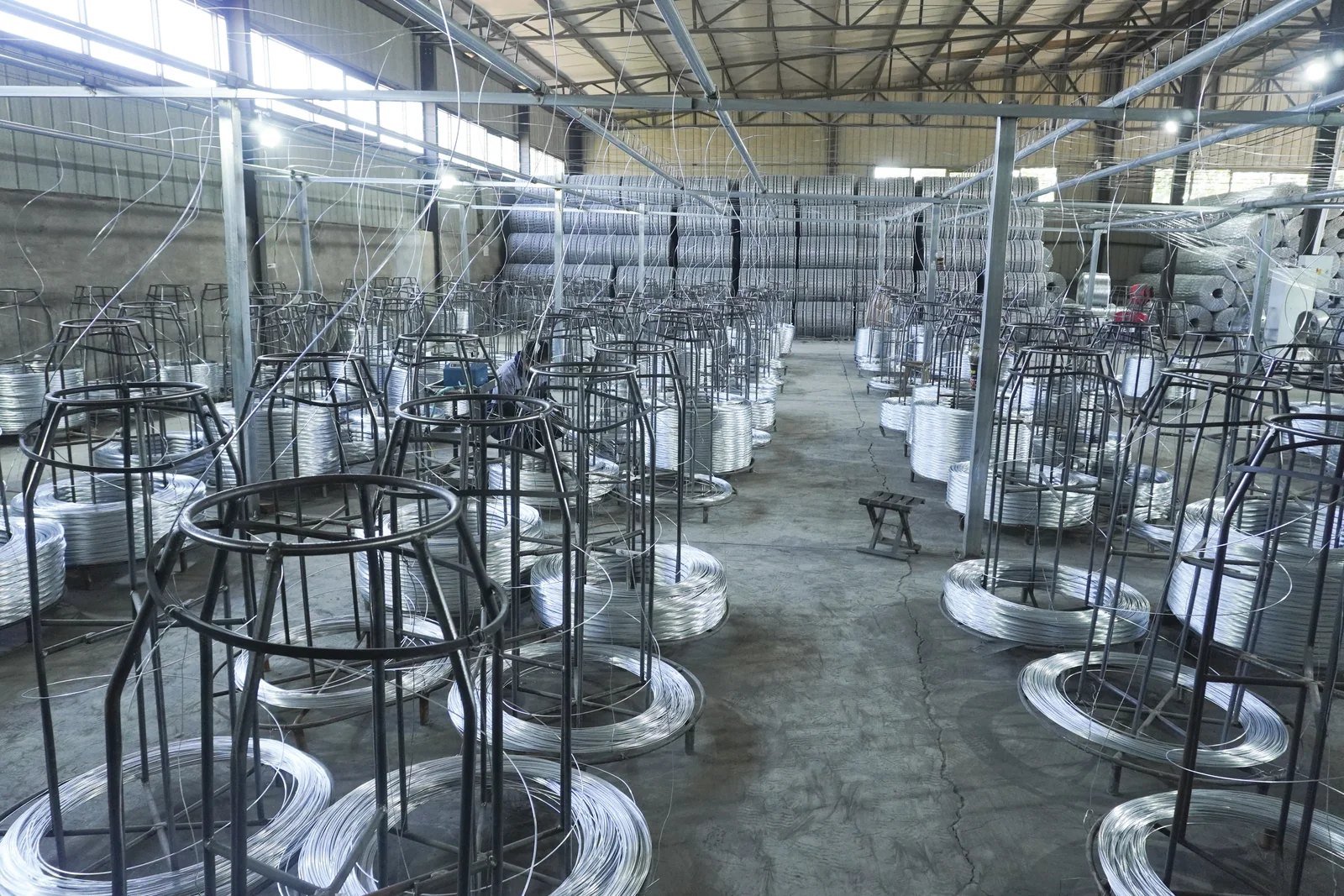

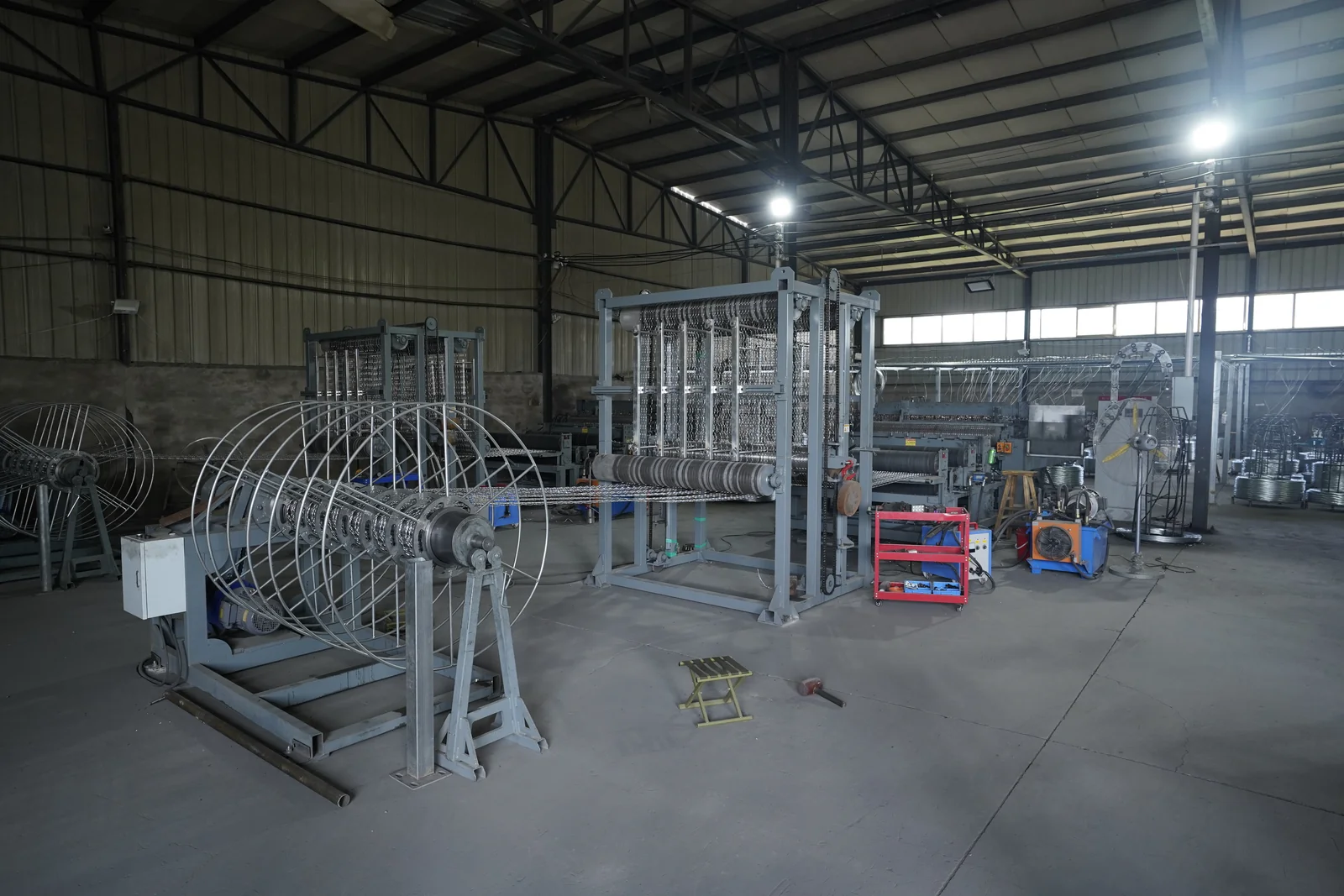

Wire mesh passing through production equipment
01 / FORMINGMesh forming

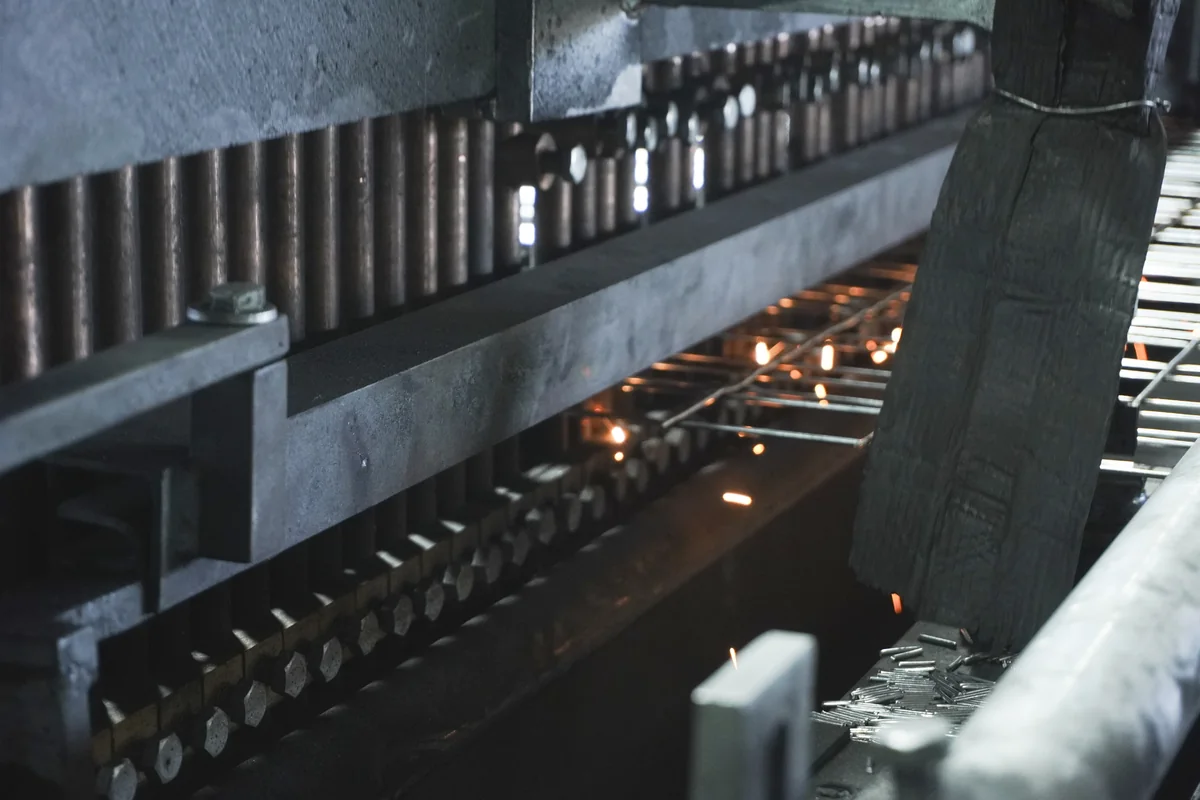

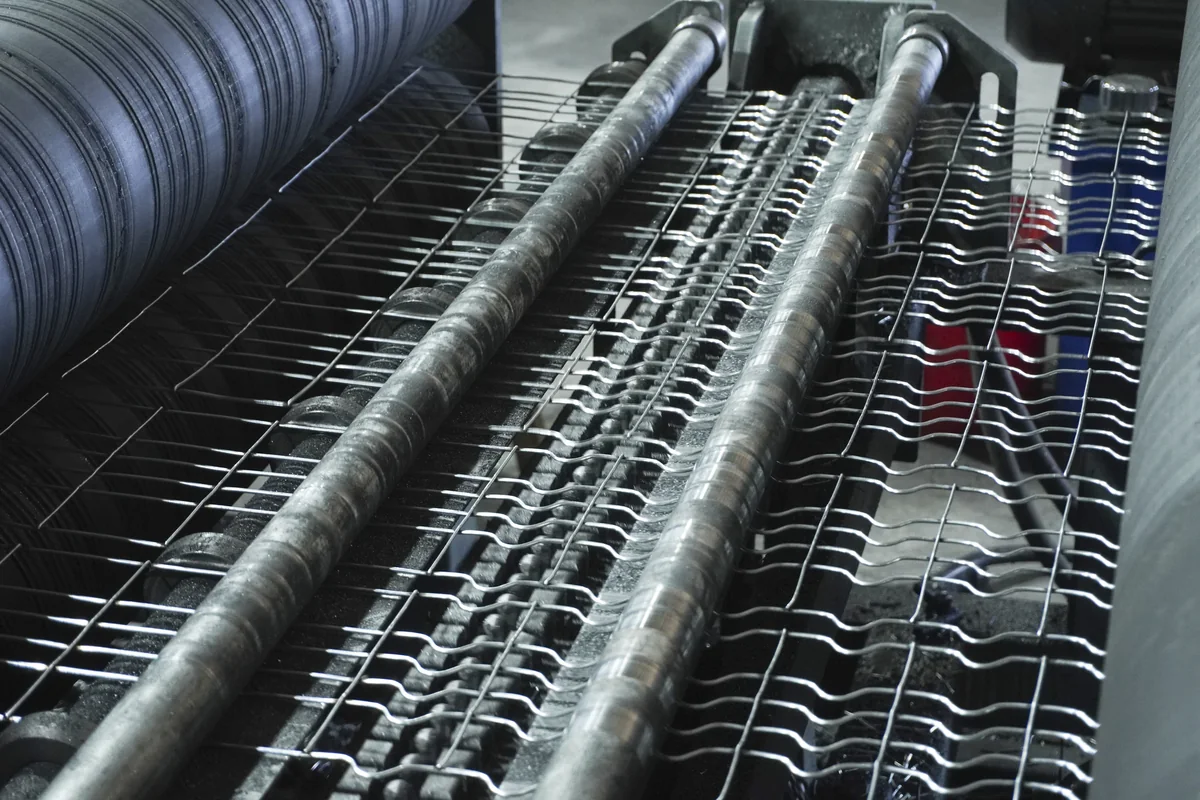

Close view of the mesh welding equipment
02 / WELDINGResistance welding

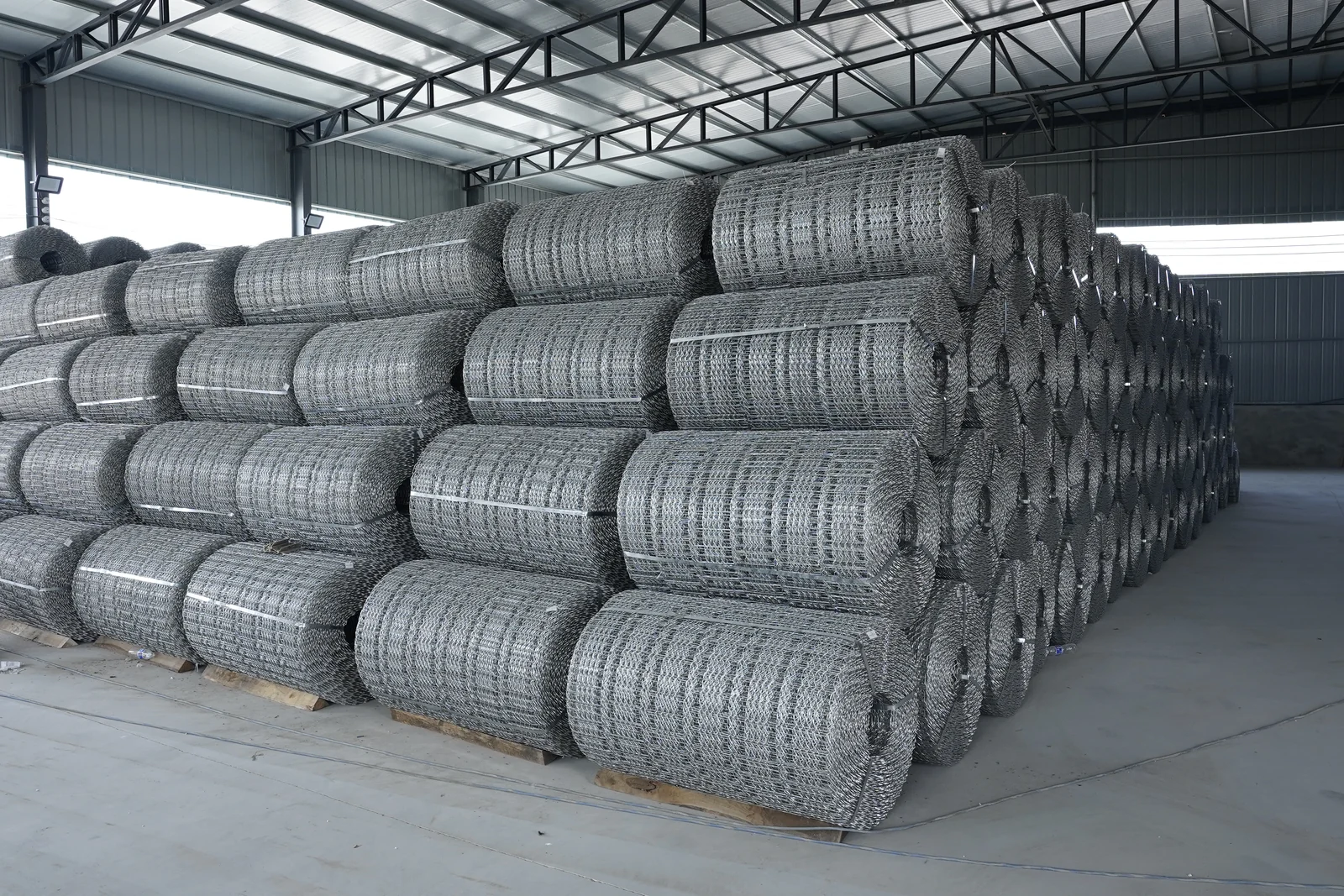

Neatly stacked mesh rolls inside the factory
03 / ROLL STORAGEFinished mesh rolls

INSPECTION REQUIREMENTS

Inspection starts with
your specification.

Include the required inspection criteria and documentation with your inquiry, covering:

  • Wire dimensions & mesh geometry
  • Wire mechanical properties
  • Weld performance requirements
  • Galvanized coating requirements
Discuss inspection requirements

04 / APPLICATIONS

For subsea, river
and wetland pipelines.

Concrete weight coating is used across different pipeline environments. Select the mesh to suit the coating design and the project's engineering requirements.

01

Subsea pipelines

Concrete-coated pipelines in offshore oil and gas transportation systems.

OFFSHORE ENVIRONMENTS
02

River crossings

Concrete weight coating for pipeline sections passing beneath rivers and waterways.

WATERWAY CROSSINGS
03

Wetland pipelines

Concrete-coated pipeline sections specified for wetland and marshland conditions.

WETLAND ENVIRONMENTS

Final coating and reinforcement selection follows the project's engineering specification.

BEFORE YOUR INQUIRY

Before you
request a quote.

What should I include in a quotation request?

Please share the wire diameter, mesh width and spacing, roll length, required quantity, destination and inspection requirements. A drawing is helpful when your specification differs from the reference configuration.

Does the mesh provide the pipeline's concrete weight?

The concrete coating provides the weight. The wire mesh is embedded as reinforcement within that coating. The complete coating arrangement is determined by the project design.

Can I inquire with a drawing instead of a model number?

Yes. Select “Drawing-based requirement” in the inquiry form and describe your requirements. Email your drawing to info@wennexa.com and include your inquiry reference if available.

How are inspection and packing requirements confirmed?

Include the required tests, applicable specification, marking and packing instructions in your inquiry. These details should be agreed as part of the supply specification before an order is placed.

05 / PROJECT INQUIRIES

Define your mesh.
Start your inquiry.

Send a specification, a drawing or a question.
Include dimensions, quantity and destination to help us understand your project.

EMAIL OUR TEAMinfo@wennexa.com
OFFICE
Fax
+86-633-8017391
CONTACT PERSON

Rizhao Wennian Trading Co., Ltd
日照文念贸易有限公司
No.252 Beijing Road, Rizhao City, Shandong, China, 276800

Start a project inquiry

Send your requirements directly to our team. We will reply to the email address you provide.

Need to share a drawing? Email it to info@wennexa.com.
